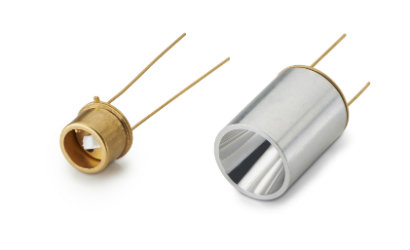

Infrared Source IR-4x Series

Operating Parameters, Diagram, Features, Products

• One of the best Sellers due to its' stable performance
• Rugged and Reliable
• Long Term Stability and Long Life
• Thin Film Laser Trimmed
• Does not require operation in a sealed atmosphere
• Can be mounted on a circuit board, alternative mounting available

MAXIMUM OPERATING PARAMETERS:

	IR-40/IR-41	IR-43
Voltage, V	26.0 (AC or DC)	14.0 (AC or DC)
Temperature, ° C	500	600
Current, A	0.10	0.09
Power, W	2.5	1.3
Life (typical)	> 25,000 hours at 500°C	> 25,000 hours at 500°C
Emissivity, %	0.80	0.80
Active Area	4 mm X 3.5 mm	1.5 mm X 1.5 mm

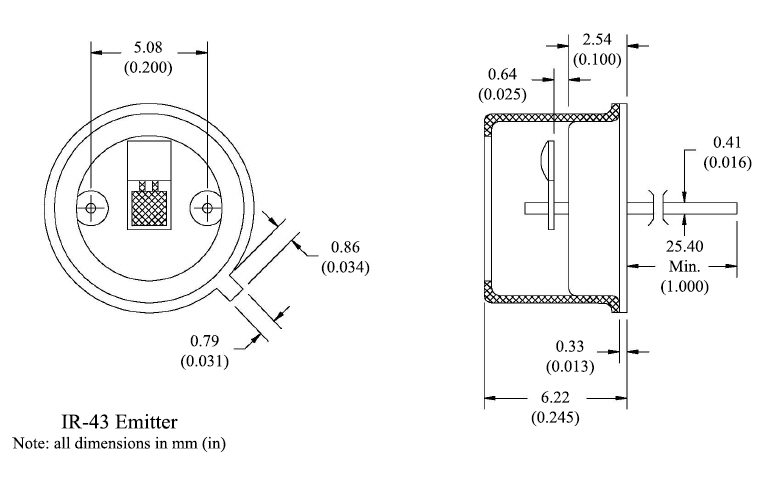

Diagram

FEATURES:

This infrared source is a thermal emitter with an emissivity of ~80%. It is appropriate for use in laboratory or field instrumentation due to its long life and stable properties.

The IR-43 radiating element is an approximately 1.5 micron thin film of precision laser trimmed resistance material which is permanently bonded to a flat substrate of alumina. This contributes to a uniform radiating source and a stable platform. The thin film design results in a low mass of radiation material. The use of this radiating elements is suited for particular applications that do not required high temperature (up to 600 °C).

The stable performance of IR-43 makes it one of the best sellers. The unit is free standing on a TO-5 header. Without a directly connected mass to draw of heat, it is very responsive. The unit does not require operation in a sealed atmosphere. IR-43 operates at 600°C with 1.3 watts input.

The IR-40 unit is attached to a TO-5 header and the IR-41 unit is attached to TO-8 header with high temperature cement. The units do not require operation in a sealed atmosphere.

STANDARD PACKAGING:

(other options / materials available upon request)

	Type	Size
Cap	Cap / NoCap
Reflector	Parabolic* / Elliptical (*to achieve optical gain up to 14x)	0.5" (12.7 mm)
Window		Transmitting Range (microns)
	Sapphire	0.17 - 5.0
	CaF2	0.15 - 9.0
	ZnSe	0.55 - 20.0
	AR Silicon	1.2 - 10.0

To learn more about our available accessories, please click here.

IR-4X SERIES PRODUCTS:

Products #	IR Source	Cap	Header	Reflector Type	Reflector Diameter	Reflector Length	Reflector Part #	Window*
IR-40NC	IR-40	no	TO-5
IR-40	IR-40	yes	TO-5					available
IR-41NC	IR-40K	no	TO-8
IR-41	IR-40	yes	TO-8					available
IR-43NC	IR-43	no	TO-5
IR-43	IR-43	yes	TO-5					available
IR-41-P-05	IR-40		TO-8	Parabolic	0.5" (12.7 mm)	0.646" (16.4 mm)	IR-RMC483	available
IR-41-E-05	IR-40		TO-8	Elliptical	0.5" (12.7 mm)	0.646" (16.4 mm)	IR-RMC484	available
IR-43-P-05	IR-43		TO-5	Parobolic	0.5" (12.7 mm)	0.646" (16.4 mm)	IR-RMC485	available
IR-43-E-05	IR-43		TO-5	Elliptical	0.5" (12.7 mm)	0.646" (16.4 mm)	IR-RMC486	available

* Please indicate Window type in your order.
